Frequency range: 1 MHz to 6 GHz

Dynamic range: 119 dB, typ.

Output power range: -40 ... 0 dBm

Measured parameters: S11, cable losses / S11, |S21|, |S12|, S22 (when using two reflectometers)

Number of ports: 1

Impedance: 50 Ohm

Measurement time per point: 100 µs

Key Features:

• Compact and lightweight 1-port Analyzer

• Direct connection to device - no test cable required

• USB-powered

• Basic measurement capabilities: Reflection coefficient magnitude and phase, Cable loss, Time domain analysis with gating (Distance to fault)

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based touchscreen-oriented Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

1NX-VNA - Transmission magnitude measurement using 2 reflectometers

Frequency range: 85 MHz to 15 GHz

Dynamic range: 125 dB (up to 4.8 GHz) / 105 dB (from 4.8 GHz), typ.

Output power range: -25 … 0 dBm

Measured parameters: S11, cable losses / S11, |S21|, |S12|, S22 (when using two reflectometers)

Number of ports: 1

Impedance: 50 Ohm

Measurement time per point: 170 µs

Key Features:

• Compact and lightweight 1-port Analyzer

• Direct connection to device - no test cable required

• USB-powered

• Basic measurement capabilities: Reflection coefficient magnitude and phase, Cable loss, Time domain analysis with gating (Distance to fault)

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based touchscreen-oriented Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

1NX-VNA - Transmission magnitude measurement using 2 reflectometers

Frequency range: 100 kHz to 4 GHz

Dynamic range: 133 dB, typ.

Output power range: -50 ... +10 dBm

Measured parameters: S11, S21, S12, S22

Number of ports: 2

Impedance: 75 Ohm

Measurement time per point: 24 μs

Optional measurement capabilities:

• AFR-X - Automatic Fixture Removal

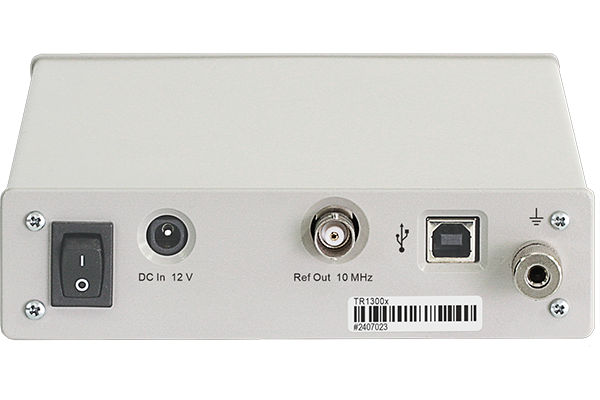

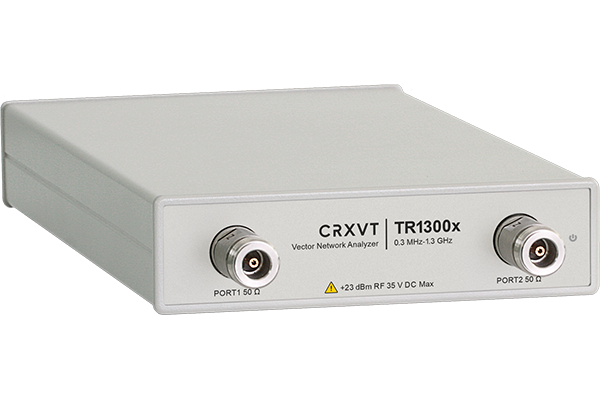

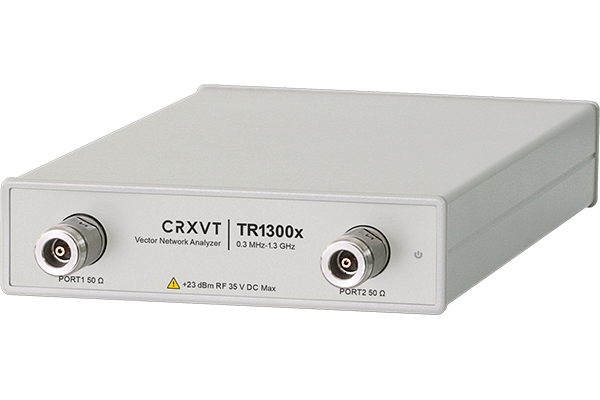

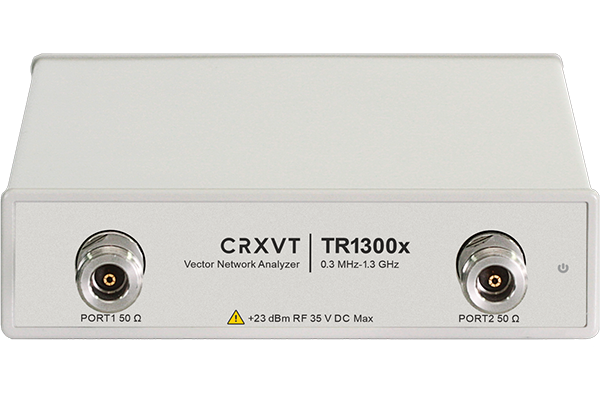

Frequency range: 9 kHz to 1.5 GHz

Dynamic range: 137 dB, typ.

Output power range: -55 ... +5 dBm

Measured parameters: S11, S21, S12, S22

Number of ports: 2

Impedance: 50 Ohm

Measurement time per point: 24 μs

Key Features:

• Uncompromising parameters in compact and lightweight form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• ACP-X - Compression point measurement

• AFR-X - Automatic Fixture Removal

• PLS-X - Pulsed measurement

Frequency range: 9 kHz to 3 GHz

Number of ports: 2

Dynamic range: 137 dB, typ.

Output power range: -55 ... +5 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 24 μs

Key Features:

• Uncompromising parameters in compact and lightweight form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• ACP-X - Compression point measurement

• AFR-X - Automatic Fixture Removal

• PLS-X - Pulsed measurement

Frequency range: 9 kHz to 4.5 GHz

Number of ports: 2

Dynamic range: 135 dB, typ.

Output power range: -55 ... +5 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 24 μs

Key Features:

 • Uncompromising parameters in compact and lightweight form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• ACP-X - Compression point measurement

• AFR-X - Automatic Fixture Removal

• PLS-X - Pulsed measurement

Frequency range: 9 kHz to 6.5 GHz

Number of ports: 2

Dynamic range: 135 dB, typ.

Output power range: -55 ... +5 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 24 μs

Key Features:

• Uncompromising parameters in compact and lightweight form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• ACP-X - Compression point measurement

• AFR-X - Automatic Fixture Removal

• PLS-X - Pulsed measurement

Frequency range: 9 kHz to 9 GHz

Number of ports: 2

Dynamic range: 135 dB, typ.

Output power range: -55 ... +5 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 24 μs

Key Features:

 • Uncompromising parameters in compact and lightweight form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• ACP-X - Compression point measurement

• AFR-X - Automatic Fixture Removal

• PLS-X - Pulsed measurement

Frequency range: 100 kHz to 18 GHz

Number of ports: 2

Dynamic range: 135 dB (up to 8 GHz) / 128 dB (from 8 GHz), typ.

Output power range: -45 ... +10 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 24 μs

Key Features:

 • Wide frequency and dynamic ranges in compact form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulse measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• SPM-X - Spectrum measurement

Frequency range: 10 MHz to 44 GHz

Number of ports: 2

Dynamic range: 135 dB, typ.

Output power range: -50 ... 0 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 22 μs

Key Features:

 • Wide frequency and dynamic ranges in compact form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• ACP-X - Compression point measurement

• AFR-X - Automatic Fixture Removal

• PLS-X - Pulsed measurement

Frequency range: 100 kHz to 9 GHz

Number of ports: 2

Dynamic range: 152 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 10 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 9 GHz

Number of ports: 2

Dynamic range: 152 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 10 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 9 GHz

Number of ports: 2

Dynamic range: 152 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 10 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 20 GHz

Number of ports: 2

Dynamic range: 135 dB, typ.

Output power range: -60 ... +10 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 20 GHz

Number of ports: 2

Dynamic range: 135 dB, typ.

Output power range: -60 ... +10 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 20 GHz

Number of ports: 2

Dynamic range: 135 dB, typ.

Output power range: -60 ... +10 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 22.5 GHz

Number of ports: 2

Dynamic range: 144 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 10 μs

Optional measurement capabilities:

• PLS-X - Pulse mode measurements

• TD-X - Time Domain analysis

• MXR-X - Vector and Scalar mixer/converter measurements

• AFR-X - Automatic Fixture Removal

• NF-X - Noise Figure measurements

Frequency range: 100 kHz to 44 GHz

Number of ports: 2

Dynamic range: 140 dB, typ.

Output power range: -50 ... +10 dBm

Measured parameters: S11, S21, S12, S22

Impedance: 50 Ohm

Measurement time per point: 10 μs

Optional measurement capabilities:

• PLS-X - Pulse mode measurements

• TD-X - Time Domain analysis

• MXR-X - Vector and Scalar mixer/converter measurements

• AFR-X - Automatic Fixture Removal

• NF-X - Noise Figure measurements

Frequency range: 10 MHz to 44 GHz

Number of ports: 4

Dynamic range: 135 dB, typ.

Output power range: -50 ... 0 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 22 μs

Key Features:

• Wide frequency and dynamic ranges in compact form factor

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, time domain analysis with gating, frequency converting devices measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• ACP-X - Compression point measurement

• AFR-X - Automatic Fixture Removal

• PLS-X - Pulsed measurement

Frequency range: 100 kHz to 9 GHz

Number of ports: 4

Dynamic range: 152 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 10 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 9 GHz

Number of ports: 4

Dynamic range: 152 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 10 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 9 GHz

Number of ports: 4

Dynamic range: 152 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 10 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 20 GHz

Number of ports: 4

Dynamic range: 135 dB, typ.

Output power range: -60 ... +10 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 20 GHz

Number of ports: 4

Dynamic range: 135 dB, typ.

Output power range: -60 ... +10 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 20 GHz

Number of ports: 4

Dynamic range: 135 dB, typ.

Output power range: -60 ... +10 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Metrological grade Analyzers in benchtop form factor

• Models hardware capabilities: direct receivers access, frequency extension modules support, second RF-signal source

• Active and passive components and devices measurement

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket) and COM/DCOM

Optional measurement capabilities:

• PLS-X - Pulsed measurement

• AUX-X - DC voltage measurement

• NF-X - Noise Figure measurement

• AFR-X - Automatic Fixture Removal

• ACP-X - Compression point measurement

• TD-X - Time domain analysis with gating

• MXR-X - Frequency converting devices measurement

Frequency range: 100 kHz to 22.5 GHz

Number of ports: 4

Dynamic range: 144 dB, typ.

Output power range: -60 ... +15 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 10 μs

Optional measurement capabilities:

• PLS-X - Pulse mode measurements

• TD-X - Time Domain analysis

• MXR-X - Vector and Scalar mixer/converter measurements

• AFR-X - Automatic Fixture Removal

• NF-X - Noise Figure measurements

Frequency range: 100 kHz to 44 GHz

Number of ports: 4

Dynamic range: 140 dB, typ.

Output power range: -50 ... +10 dBm

Measured parameters: S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 10 μs

Optional measurement capabilities:

• PLS-X - Pulse mode measurements

• TD-X - Time Domain analysis

• MXR-X - Vector and Scalar mixer/converter measurements

• AFR-X - Automatic Fixture Removal

• NF-X - Noise Figure measurements

Frequency range: 300 kHz to 9 GHz

Number of ports: 6/8/10/12/14/16

Dynamic range: 140 dB (5 MHz - 6 GHz), typ.

Output power range: -45 ... +10 dBm (5 MHz - 6 GHz)

Measured parameters: X709-6: S11, S21 … S66

X709-8: S11, S21 … S88

X709-10: S11, S21 … S1010

X709-12: S11, S21 … S1212

X709-14: S11, S21 … S1414

X709-16: S11, S21 … S1616

Impedance: 50 Ohm

Measurement time per point: 24 μs

Key Features:

• Multiport analyzer in benchtop form factor (6 to 16 ports)

• Basic measurement capabilities: S-parameters and absolute power measurement, balanced measurement

• Calibrating with mechanical kit or Automatic Calibration Module

• Windows/Linux-based Software

• Software remote control via SCPI (over HiSLIP or TCP/IP Socket)

Optional measurement capabilities:

• AFR-X - Automatic Fixture Removal

• TD-X - Time domain analysis with gating

• ACP-X - Compression point measurement

• MXR-X - Frequency converting devices measurement

Frequency range: 10 MHz to 18 GHz

Number of input ports: 2

Number of output ports: 8

Insertion loss: ≤10 dBm

Maximum switching power: 30 dBm

Return loss of unselected port: ≥17 dB

Return loss of selected port: ≥15 dB

Signal isolation: ≥ 92 dB

Operation speed: switching time no more than 200 ns

Key Features:

• Solid-state benchtop RF-port extenders

• Models switch matrix configuration: 2 to 8, 2 to 16

• Remote control via SCPI (over USB)

• Fast switching by means of trigger ports

• Software for manual controlling (SWC)

• Optional software for multiport measurement using Analyzer and Extender (coming soon)

Frequency range: 10 MHz to 18 GHz

Number of input ports: 2

Number of output ports: 16

Insertion loss: ≤10 dBm

Maximum switching power: 30 dBm

Return loss of unselected port: ≥17 dB

Return loss of selected port: ≥15 dB

Signal isolation: ≥ 92 dB

Operation speed: switching time no more than 200 ns

Key Features:

• Solid-state benchtop RF-port extenders

• Models switch matrix configuration: 2 to 8, 2 to 16

• Remote control via SCPI (over USB)

• Fast switching by means of trigger ports

• Software for manual controlling (SWC)

• Optional software for multiport measurement using Analyzer and Extender (coming soon)

Frequency range: 18 to 54 GHz

Number of ports: 1

Dynamic range: 18 to 36 GHz: 133 dB (140 dB, typ.)

36 to 50 GHz: 123 dB

50 to 54 GHz: 114 dB

Output power range: 18 to 50 GHz: -20 … +3 dBm

50 to 54 GHz: -20 … -6 dBm

Measured parameters: S11, S21, S12, S22

S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Frequency extension modules for Benchtop Series VNA

Frequency range: 50 to 75 GHz

Number of ports: 1

Dynamic range: 120 dB, typ.

Output power range: +14 dBm, typ.

Measured parameters: S11, S21, S12, S22

S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Frequency extension modules for Benchtop Series VNA

• Filters and Antenna systems measurement, and on-wafer testing

• Up to 2/4 modules can be connected to the Analyzer (depending on ports number)

• Controlled and powered by the Analyzer

• Supporting all the measurement capabilities of the Analyzer

• Calibrating with mechanical kit

• Optional embedded electronic attenuators

Frequency range: 75 to 110 GHz

Number of ports: 1

Dynamic range: 120 dB, typ.

Output power range: +10 dBm, typ.

Measured parameters: S11, S21, S12, S22

S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Frequency extension modules for Benchtop Series VNA

• Filters and Antenna systems measurement, and on-wafer testing

• Up to 2/4 modules can be connected to the Analyzer (depending on ports number)

• Controlled and powered by the Analyzer

• Supporting all the measurement capabilities of the Analyzer

• Calibrating with mechanical kit

• Optional embedded electronic attenuators

Frequency range: 110 to 178 GHz

Number of ports: 1

Dynamic range: 110 dB, typ.

Output power range: -2 dBm, typ.

Measured parameters: S11, S21, S12, S22

S11, S21 ... S44

Impedance: 50 Ohm

Measurement time per point: 12 µs

Key Features:

• Frequency extension modules for Benchtop Series VNA

• Filters and Antenna systems measurement, and on-wafer testing

• Up to 2/4 modules can be connected to the Analyzer (depending on ports number)

• Controlled and powered by the Analyzer

• Supporting all the measurement capabilities of the Analyzer

• Calibrating with mechanical kit

• Optional embedded electronic attenuators

Frequency range: 20 kHz to 4 GHz

Number of ports: 2

Impedance: 75 Ohm

Connector type: N75 type

Connector configuration: female-female, male-male, male-female

Frequency range: 20 kHz to 6 GHz

Number of ports: 2

Impedance: 50 Ohm

Connector type: N type, 3,5 mm

Connector configuration: female-female, male-male, male-female

Frequency range: 20 kHz to 9 GHz

Number of ports: 2

Impedance: 50 Ohm

Connector type: N type, 3,5 mm

Connector configuration: female-female, male-male, male-female

Frequency range:

100 kHz to 18 GHz

100 kHz to 20 GHz

Number of ports: 2

Impedance: 50 Ohm

Connector type: N type, 3,5 mm

Connector configuration: female-female, male-male, male-female

Frequency range: 10 MHz to 32 GHz

Number of ports: 2

Impedance: 50 Ohm

Connector type: 3.5 mm

Connector configuration: female-female, male-male, male-female

Frequency range:

10 MHz to 40 GHz (2.92 mm)

10 MHz to 44 GHz (2.4 mm)

Number of ports: 2

Impedance: 50 Ohm

Connector type: 2.92 mm, 2.4 mm

Connector configuration: female-female, male-male, male-female

Frequency range: 100 kHz to 9 GHz

Number of ports: 4

Impedance: 50 Ohm

Connector type: N type, 3,5 mm

Connector configuration: female-female, male-female

Frequency range: 100 kHz to 20 GHz

Number of ports: 4

Impedance: 50 Ohm

Connector type: N type, 3,5 mm

Connector configuration: female-female, male-female

Frequency range: 20 kHz to 6 GHz

Number of ports: 2

Impedance: 50 Ohm

Connector type: N type, 3,5 mm

Connector configuration: female-female, male-male, male-female
